3HP RELIANCE 1750RPM 1811ATCZ TENV 180VDC MOTOR T18R1102
3HP RELIANCE 1750RPM 1811ATCZ TENV 180VDC MOTOR T18R1102

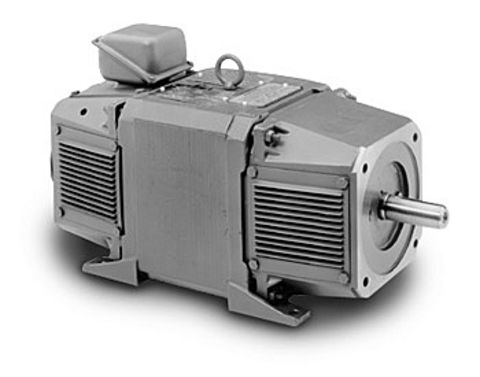

Picture is for reference only.
Part Number:
T18R1102Manufacturer:
Baldor Obsolete MotorsManufacturer Part Number:
T18R1102This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
14 x 26 x 14 inchesTechnical Details
Documentation
Additional Information
BALDOR T18R1102 has been superseded by CD1803R
Cat Number:
T18R1102
Description:
3HP,1750RPM,DC1811ATCZ,TENV,180VDC,SHUNT
Ship Weight:
160 lbs.
Model Number:
T18R1102
HP:
3.0
MAX RPM:
4500
Speed (RPM):
1750
Voltage ARM:
180VDC
Amps ARM:
14.10
Enclosure:
TENV
Winding:
STR SHUNT
Field Volts:
100/200VDC
Hot Amps:
N/A
Frame Size):
DC1811ATCZ
Duty:
CONT
Min AMB:
0*C
AMB:
40*C
Power Code:
N/A
Type:
TR
Service Factor
1.0
Insulation:
F
Mounting:
Rigid C-FACE
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
