2HP BALDOR 3450RPM 56/56H OPEN 3PH MOTOR RM3155A

Catalog Number:  RM3155A
Description:  2HP,3450RPM,3PH,60HZ,56/56H,OPEN
Ship Weight:  33 lbs.

APPLICATIONS: includes ventilators, summer cooling fans, band saws drill presses, farm equipment.

FEATURES:

  • Heavy gauge steel base
  • Ball bearings
  • Suitable for mounting in any position
  • Dynamically balanced rotors for reduced vibration and quiet operation.
SPEC. NUMBER: 34-5809-5900
CATALOG NUMBER: RM3155A
FL AMPS: 5.4/2.7
208V AMPS: 6.4
BEARING-DRIVE-END: 6203
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 80
ENCLOSURE: OPEN
FRAME: 56/56H
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: H
SPEED [rpm]: 3450
OUTPUT [hp]: 2
PHASE: 3
POWER-FACTOR: 84
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

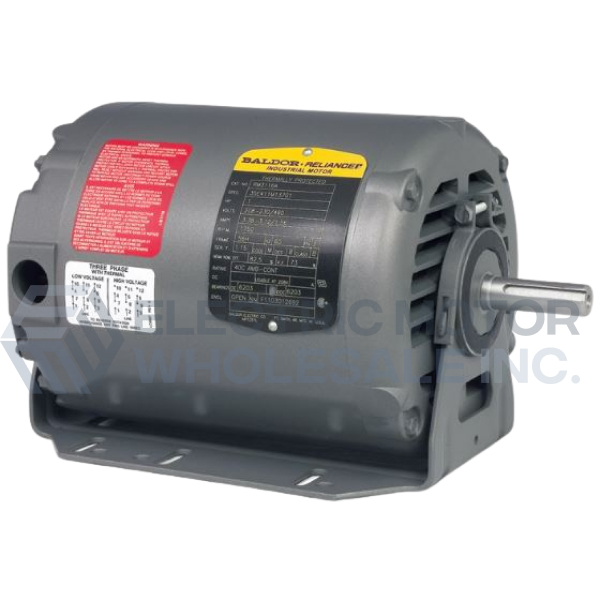

2HP BALDOR 3450RPM 56/56H OPEN 3PH MOTOR RM3155A
