1.5HP BALDOR 1725RPM 56 TEFC 1PH MOTOR PL3514M

1.5HP BALDOR 1725RPM 56 TEFC 1PH MOTOR PL3514M

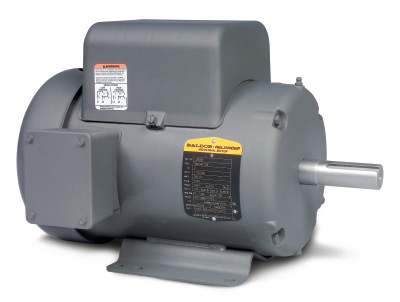

Picture is for reference only.

Part Number:

PL3514M

Model/Spec Number:

35H229Y860

Manufacturer:

Baldor Obsolete Motors
BALDOR PL3514M, 1.5HP Pressure Washer Motor is designed for use with pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

Item Discontinued

Click below to request an agent review potential options.

Weight:

56 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

Technical Details

Application:

Pressure Washer Duty

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

115/230

Frequency (Hz):

60

PL3514M-InfoPacket
