3HP BALDOR 3450RPM 56 OPEN 1PH MOTOR PL1326M

Catalog Number:  PL1326M
Description:  3HP,3450RPM,56,OPEN,1PH,60HZ,PRESSURE WASHER
Ship Weight:  49 lbs.

APPLICATIONS: Designed for use with pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

FEATURES:

  • Ball bearing design
  • Manual thermal overload located in the conduit box
  • UL and CSA recognized component approval
  • 200°C copper windings
  • Capacitor start, capacitor run (two value capacitor)
SPEC. NUMBER: 35T963Y771
CATALOG NUMBER: PL1326M
FL AMPS: 12.5
208V AMPS: 13.7
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: L
DOE-CODE: --
FL EFFICIENCY: 85.5
ENCLOSURE: OPEN
FRAME: 56
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: G
SPEED [rpm]: 3450
OUTPUT [hp]: 3
PHASE: 1
POWER-FACTOR: 95
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230

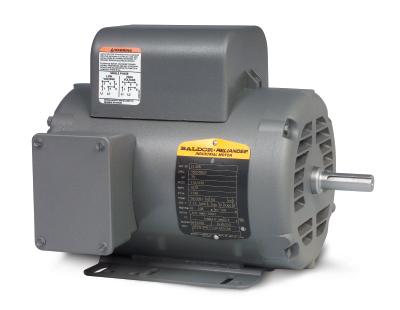

3HP BALDOR 3450RPM 56 OPEN 1PH MOTOR PL1326M
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: PL1326M
Stock # PL1326M
Price: $450.00
Compare At: $794.00
