2HP BALDOR 1725RPM 56 OPEN 1PH MOTOR PL1322M
| Catalog Number: | PL1322M |
| Description: | 2HP,1725RPM,56,OPEN,1PH,60HZ,PRESSURE WASHER |
| Ship Weight: | 46 lbs. |
APPLICATIONS: Designed for use with pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.
FEATURES:
- Ball bearing design
- Manual thermal overload located in the conduit box
- UL and CSA recognized component approval
- 200°C copper windings
- Capacitor start, capacitor run (two value capacitor)
| SPEC. NUMBER: | 35G840Y690 |
| CATALOG NUMBER: | PL1322M |
| FL AMPS: | 18.4/9.2 |
| 208V AMPS: | -- |
| BEARING-DRIVE-END: | 6205 |
| BEARING-OPP-DRIVE-END: | 6203 |
| DESIGN CODE: | L |
| DOE-CODE: | -- |
| FL EFFICIENCY: | 78.5 |
| ENCLOSURE: | OPEN |
| FRAME: | 56 |
| HERTZ: | 60 |
| INSULATION-CLASS: | B |
| KVA-CODE: | J |
| SPEED [rpm]: | 1725 |
| OUTPUT [hp]: | 2 |
| PHASE: | 1 |
| POWER-FACTOR: | 89 |
| RATING: | 40C AMB-CONT |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.15 |
| VOLTAGE: | 115/230 |

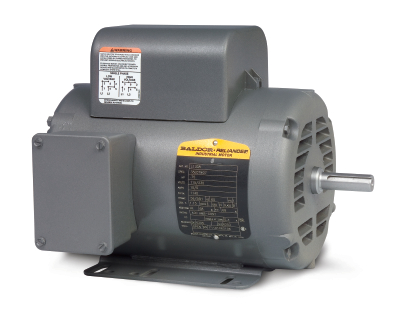

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: PL1322M
Stock # PL1322M
