1.5HP BALDOR 1725RPM 56 OPEN 1PH MOTOR PL1319M

Catalog Number:  PL1319M
Description:  1.5HP,1725RPM,56,OPEN,1PH,60HZ,PRESSURE WASHER
Ship Weight:  43 lbs.

APPLICATIONS: Designed for use with pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

FEATURES:

  • Ball bearing design
  • 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts
  • Manual thermal overload located in the conduit box
  • UL and CSA recognized component approval
  • 200°C copper windings
  • Capacitor start, capacitor run (two value capacitor)
SPEC. NUMBER: 35G840Y725
CATALOG NUMBER: PL1319M
FL AMPS: 14/7
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: -
DOE-CODE: --
FL EFFICIENCY: 74
ENCLOSURE: OPEN
FRAME: 56
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: J
SPEED [rpm]: 1725
OUTPUT [hp]: 1.5
PHASE: 1
POWER-FACTOR: 94
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 115/230

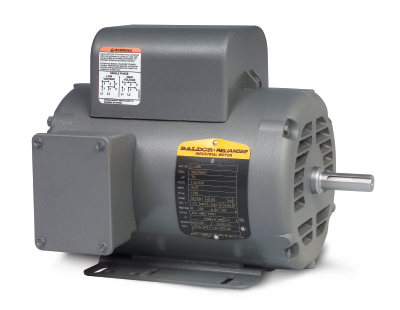

1.5HP BALDOR 1725RPM 56 OPEN 1PH MOTOR PL1319M
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: PL1319M
