1.5HP BALDOR 3450RPM 56H OPEN 1PH MOTOR PL1313M

1.5HP BALDOR 3450RPM 56H OPEN 1PH MOTOR PL1313M

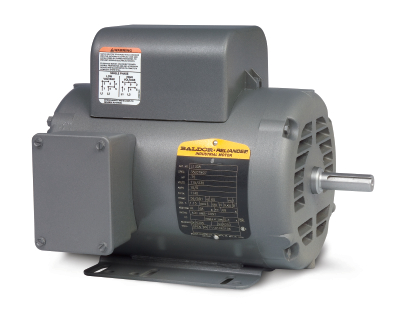

Picture is for reference only.

Part Number:

PL1313M

Model/Spec Number:

35K352Y686

Manufacturer:

Baldor Obsolete Motors
BALDOR PL1313M, 1.5HP Pressure Washer Motor is designed for use with pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

Item Discontinued

Click below to request an agent review potential options.

Weight:

42 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

Technical Details

Application:

Pressure Washer Duty

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame NEMA:

56H

Mount NEMA:

Base Mount

Enclosure NEMA:

OPEN

Enclosure IEC:

IP22

Voltage:

115/230

Frequency (Hz):

60

PL1313M-InfoPacket
