1.5HP BALDOR 3450RPM 56C OPEN 1PH MOTOR PCL1313M

Catalog Number:  PCL1313M
Description:  1.5HP,3450RPM,56C,OPEN,1PH,60HZ,PRESSURE WASHER
Ship Weight:  38 lbs.

APPLICATIONS: Designed for use with pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

FEATURES:

  • Ball bearing design
  • 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts
  • Manual thermal overload located in the conduit box
  • UL and CSA recognized component approval
  • 200°C copper windings
  • Capacitor start, capacitor run (two value capacitor)
SPEC. NUMBER: 35T969Y686
CATALOG NUMBER: PCL1313M
FL AMPS: 13.2/6.6
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: L
DOE-CODE: --
FL EFFICIENCY: 75.5
ENCLOSURE: OPEN
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: F
SPEED [rpm]: 3450
OUTPUT [hp]: 1.5
PHASE: 1
POWER-FACTOR: 98
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 115/230

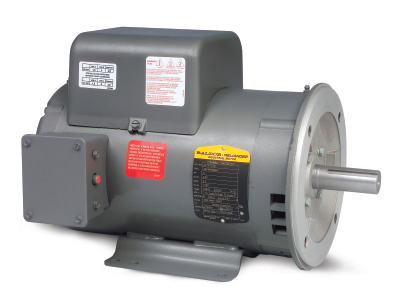

1.5HP BALDOR 3450RPM 56C OPEN 1PH MOTOR PCL1313M
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: PCL1313M
Stock # PCL1313M
Price: $340.00
Compare At: $598.00
Quantity:
