1HP BALDOR 1725RPM D80 TEFC 3PH MOTOR MM3546

Catalog Number:  MM3546
Description:  .75KW-1HP,1725RPM,D80,TEFC,3PH,60HZ
Ship Weight:  33 lbs.

APPLICATIONS: Designed for pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC Metric B3 base mount replacements.

FEATURES:

  • IEC-B3 mount
  • Conforms to IEC 60072-1 and IEC 60034-1.
  • Rigid Base
  • Conduit box mounted F-2
  • Pressure cast aluminum end plates with ribbed design for rigidity.
  • Ball bearings with a locked drive end bearing
  • Heavy-gauge steel frames and gasketed conduit box
  • Motors with shaded rows have cast iron frames and endplates.
SPEC. NUMBER: 34G167-3254G3
CATALOG NUMBER: MM3546
FL AMPS: 3.8-3.6/1.8
208V AMPS: 3.8
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 75.5
ENCLOSURE-INGRESS-PROT: --
FRAME: D80
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: L
SPEED [rpm]: 1725
OUTPUT [kw]: .75KW
PHASE: 3
POWER-FACTOR: 64
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
VOLTAGE: 208-230/460

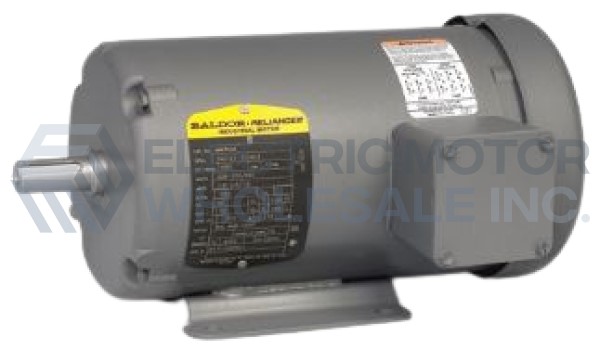

1HP BALDOR 1725RPM D80 TEFC 3PH MOTOR MM3546
Click Image to Enlarge
Manufacturer Part Number: MM3546
Stock # MM3546
