100HP BALDOR 1775RPM 405T XPFC 3PH MOTOR M7090T-I

100HP BALDOR 1775RPM 405T XPFC 3PH MOTOR M7090T-I

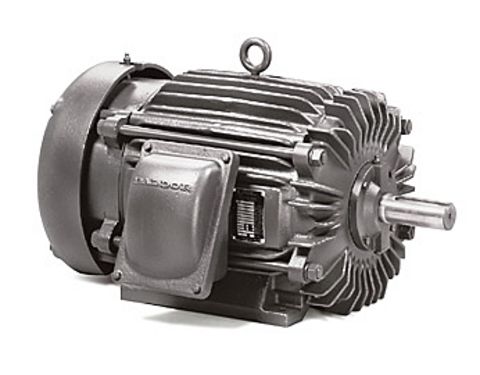

Picture is for reference only.

Part Number:

M7090T-I

Model/Spec Number:

16M014W729H1

Manufacturer:

Baldor Obsolete Motors

Manufacturer Part Number:

M7090T-I
BALDOR M7090T-I 100HP Drill Rig Duty Explosion Proof Motors are designed for on and offshore drill rig service, bulk fuel terminals and transfer stations. They are designed to withstand hazardous-duty applications with demanding service factor needs.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

1,338 lbs

Dimensions:

16 x 20 x 16 inches

UPC:

781568106686

Technical Details

Application:

Explosion Proof

Output HP:

100

Output RPM:

1300-1800 (4P)

Frame Size NEMA:

404-5T

Mount NEMA:

With Base

Enclosure NEMA:

EPFC, XPFC

Voltage:

230, 230/460, 460

Frequency (Hz):

50, 60

Efficiency:

IE2: High Eff.

Thermal Protection:

None

Product Information Packet

APPLICATIONS: Ideal for on and off shore drill rig service, bulk fuel terminals, and transfer stations. For use in high humidity hazardous-duty applications driving pumps, compressors, blowers, fans, and many other loads that require 1.15 service factor explosion-proof motors.

Features:

  • Labyrinth-type recessed metal shaft slinger for increased bearing protection
  • Explosion-proof breather/drain to prevent build up of condensation
  • 40°C ambient, Class F insulation
  • Cast Iron frame
  • Corrision resistant finish with two part epoxy coating
  • U.L. and CSA approved for Class I, Group C & D, T3C
  • Suitable for 55°C at 1.15 service factor.
