5HP BALDOR 1750RPM 184T XPFC 3PH MOTOR M7044T-I
5HP BALDOR 1750RPM 184T XPFC 3PH MOTOR M7044T-I

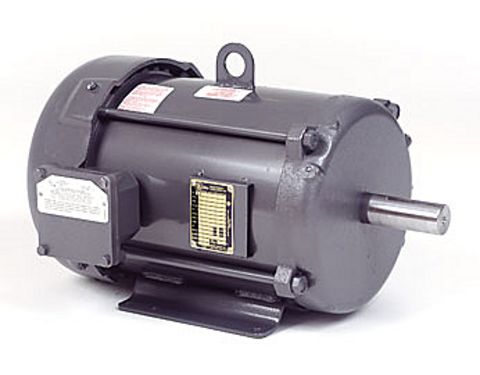

Picture is for reference only.
Part Number:
M7044T-IModel/Spec Number:
36J694X864H1Manufacturer:
Baldor Obsolete MotorsClick below to view suggested functional replacement.
Shipping Details
Weight:
60 lbsDimensions:
16 x 26 x 16 inchesUPC:
781568106570Technical Details
Specifications
Application: | Explosion Proof |
Output HP: | 5 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 182-4T |
Mount NEMA: | With Base |
Enclosure NEMA: | EPFC, XPFC |
Voltage: | 230, 230/460, 460 |
Frequency (Hz): | 50, 60 |
Efficiency: | IE2: High Eff. |
Thermal Protection: | None |
Documentation
Additional Information
APPLICATIONS: Ideal for on and off shore drill rig service, bulk fuel terminals, and transfer stations. For use in high humidity hazardous-duty applications driving pumps, compressors, blowers, fans, and many other loads that require 1.15 service factor explosion-proof motors.
Features:
- Labyrinth-type recessed metal shaft slinger for increased bearing protection
- 1-1/8" Keyed output shaft
- Explosion-proof breather/drain to prevent build up of condensation
- 40°C ambient, Class F insulation
- Corrision resistant finish with two part epoxy coating
- U.L. and CSA approved for Class I, Group C & D, T3C
- Suitable for 55°C at 1.15 service factor.
Click below to view suggested functional replacement.
Shipping Details
Weight:
60 lbsDimensions:
16 x 26 x 16 inchesUPC:
781568106570
