1/3HP BALDOR 1140RPM 56 XPFC 3PH MOTOR M7003A

Catalog Number:  M7003A
Description:  1/3HP,1140RPM,56,XPFC,3PH,60HZ,HAZARDOUS LOCATION
Ship Weight:  34 lbs.

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

  • U.L. and CSA approved for Class I, Group D, Class II, Group F & G, T4
  • Available in 182T through 449T frames (-c models)
  • Corrosion resistant epoxy finish
  • U.L. approved cast conduit box standard
  • 1.00 Service Factor
SPEC. NUMBER: 35E354Z08
CATALOG NUMBER: M7003A
FL AMPS: 1.7-1.6/.8
208V AMPS: 1.8
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 70
FRAME: 56
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: K
SPEED [rpm]: 1140
NAMEPLATE-SERIAL-NUMBER: --
OUTPUT [hp]: .33
PHASE: 3
POWER-FACTOR: 57
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
TEMP. CODE: T4
VOLTAGE: 208-230/460
1/3HP BALDOR 1140RPM 56 XPFC 3PH MOTOR M7003A

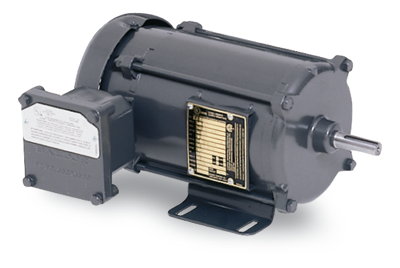

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M7003A
Stock # M7003A
Price: $577.00
Compare At: $992.00
