3HP BALDOR 1165RPM 213T TEFC 3PH MOTOR M3704T

BALDOR M3704T has been superseded by EM3704T

Catalog Number:  M3704T
Description:  3HP,1165RPM,213T,TEFC,3PH,60HZ
Ship Weight:  108 lbs.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel frames
CATALOG NUMBER: M3704T
FL AMPS: 9.9-9.2/4.6
208V AMPS: --
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 87.5
ENCLOSURE: TEFC
FRAME: 213T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1165
OUTPUT [hp]: 3
PHASE: 3
POWER-FACTOR: 69
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPEC. NUMBER: 37G813T975H1
VOLTAGE: 208-230/460

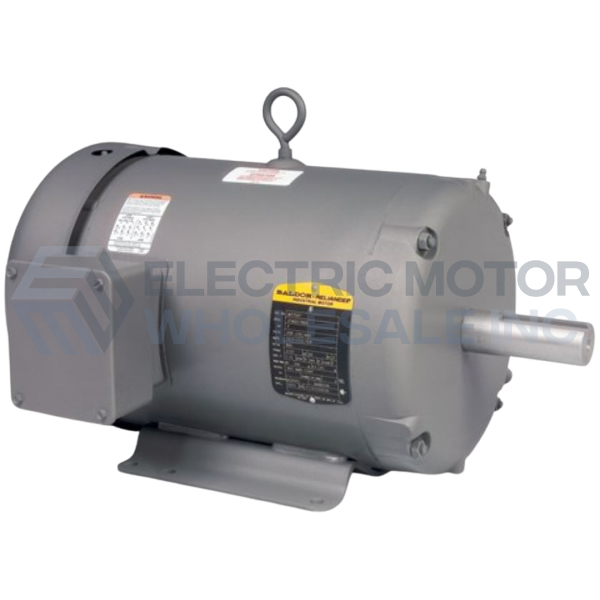

3HP BALDOR 1165RPM 213T TEFC 3PH MOTOR M3704T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M3704T
Stock # M3704T
