3HP BALDOR 3450RPM 182T TEFC 3PH MOTOR M3610T

BALDOR M3610T has been superseded by EM3610T

Catalog Number:  M3610T
Description:  3HP,3450RPM,182T, TEFC,3PH,60HZ
Ship Weight:  57 lbs.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel
SPEC. NUMBER: 35L100T886H1
CATALOG NUMBER: M3610T
FL AMPS: 8-7.4/3.7
208V AMPS: 8
BEARING-DRIVE-END: 6206
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 85.5
ENCLOSURE: TEFC
FRAME: 182T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 3450
OUTPUT [hp]: 3
PHASE: 3
POWER-FACTOR: 89
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

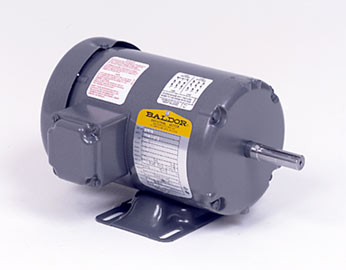

3HP BALDOR 3450RPM 182T TEFC 3PH MOTOR M3610T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M3610T
Stock # M3610T
