2HP BALDOR 3450RPM 145T TEFC 3PH MOTOR M3555T

OUT OF STOCK

BALDOR M3555T has been superseded EM3555T

Catalog Number:  M3555T
Description:  2HP,3450RPM,145T,TEFC,3PH,60HZ
Ship Weight:  41 lbs.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel frames
SPEC. NUMBER: 35T638T962H1
CATALOG NUMBER: M3555T
FL AMPS: 5.6-5.2/2.6
208V AMPS: 5.6
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 84
ENCLOSURE: TEFC
FRAME: 145T
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: L
SPEED [rpm]: 3450
OUTPUT [hp]: 2
PHASE: 3
POWER-FACTOR: 88
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

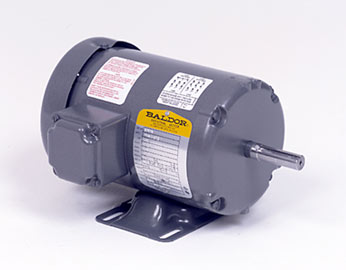

2HP BALDOR 3450RPM 145T TEFC 3PH MOTOR M3555T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M3555T
