1HP BALDOR 1440RPM 143T TEFC 50HZ 3PH MOTOR M3546T-57

BALDOR M3546T-50 has been superseded by M3546T-57

Catalog Number: M3546T-57
Description: 1HP,1440RPM,143T,TEFC,3PH,50HZ
Ship Weight: 33 lbs.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
SPEC. NUMBER: 35AA001M807H1
CATALOG NUMBER: M3546T-57
FL AMPS: 3.1/1.8
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
BLANK-LINE-1: --
BLANK-LINE-2: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 80
EFFICIENCY-IEC: --
ENCLOSURE: TEFC
ENCLOSURE-INGRESS-PROT: 54
FRAME: 143T
HERTZ: 50
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1440
OUTPUT [hp]: 1
PHASE: 3
POWER-FACTOR: 76
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/400

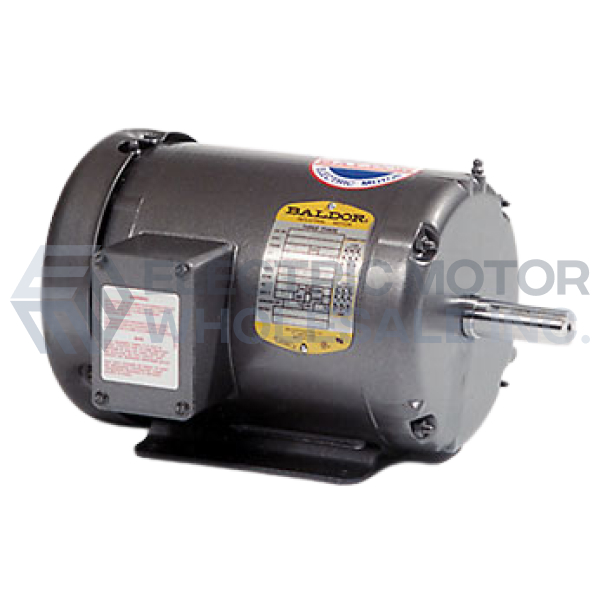

1HP BALDOR 1440RPM 143T TEFC 50HZ 3PH MOTOR M3546T-57
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M3546T-57
Stock # M3546T-57
