3/4HP BALDOR 1425RPM 56 TEFC 50HZ 3PH MOTOR M3542-57

BALDOR M3542-50 has been superseded by M3542-57

BALDOR Catalog Number:  M3542-57
Description:  3/4HP,1425RPM,56,TEFC,3PH,50HZ
Ship Weight:  32 lbs.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
SPEC. NUMBER: 34A061-3996G1
CATALOG NUMBER: M3542-57
FL AMPS: 3.1/1.8
208V AMPS: --
BEARING-DRIVE-END: 6203
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 75.5
ENCLOSURE: TEFC
FRAME: 56
HERTZ: 50
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1425 IP44
OUTPUT [hp]: .75
PHASE: 3
POWER-FACTOR: 59
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.25
VOLTAGE: 230/400

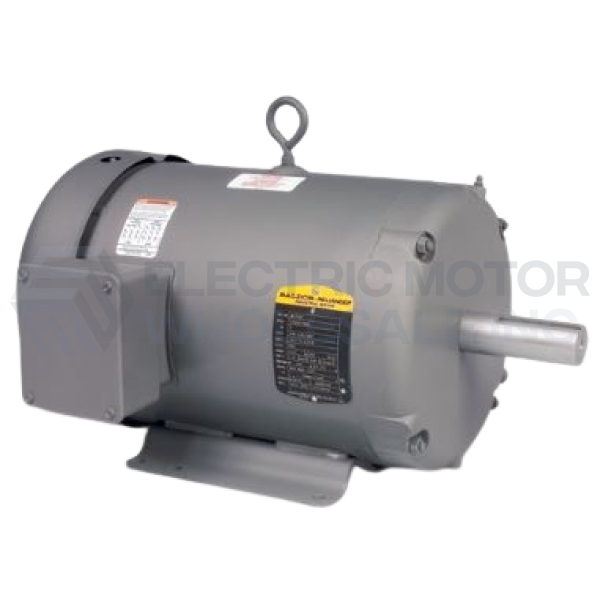

3/4HP BALDOR 1425RPM 56 TEFC 50HZ 3PH MOTOR M3542-57
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M3542-57
Stock # M3542-57
Price: $278.00
Compare At: $477.00
