3/4HP BALDOR 2850RPM 56 TEFC 50HZ 3PH MOTOR M3541-57

BALDOR M3541-50 has been superseded by M3541-57

Catalog Number:  M3541-57
Description:  3/4HP,2850RPM,56,TEFC,3PH,50HZ
Ship Weight:  25 lbs.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
SPEC. NUMBER: 34A061Y004G3
CATALOG NUMBER: M3541-57
FL AMPS: 2.4/1.4
208V AMPS: --
BEARING-DRIVE-END: 6203
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 75.5
ENCLOSURE: TEFC
FRAME: 56
HERTZ: 50
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 2850 IP44
OUTPUT [hp]: .75
PHASE: 3
POWER-FACTOR: 75
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.25
VOLTAGE: 230/400

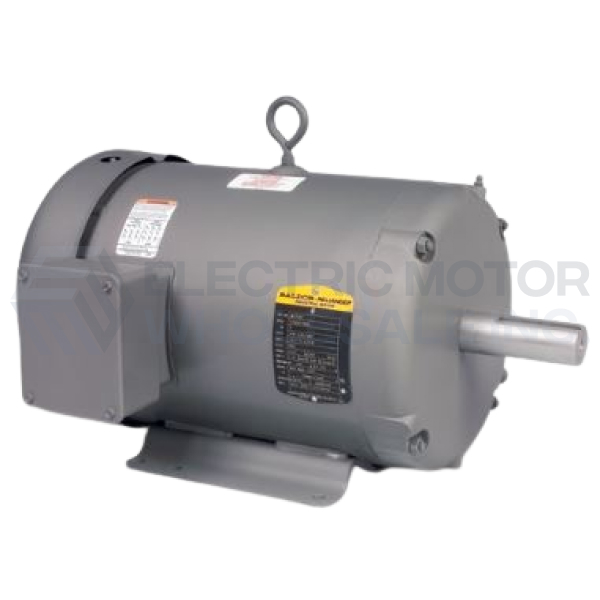

3/4HP BALDOR 2850RPM 56 TEFC 50HZ 3PH MOTOR M3541-57
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M3541-57
Stock # M3541-57
Price: $260.00
Compare At: $446.00
