3HP BALDOR 1745RPM 145T OPSB 3PH MOTOR M3161T

This motor has been discontinued

LEESON Catalog Number:  M3161T
Description:  3HP,1745RPM,145T,OPSB,3PH,60HZ
Ship Weight:  54 lbs.



APPLICATIONS: Pumps, compressors, machine tools, conveyors, blowers, fans and many other applications requiring three phase power.

FEATURES:

  • Heavy gauge steel frame
  • Ball bearings
  • Copper windings
SPEC. NUMBER: 35B101P741H1
CATALOG NUMBER: M3161T
FL AMPS: 8.9-8.2/4.1
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 86.5
ENCLOSURE: OPSB
FRAME: 145T
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: K
SPEED [rpm]: 1745
OUTPUT [hp]: 3
PHASE: 3
POWER-FACTOR: 80
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460
3HP BALDOR 1745RPM 145T OPSB 3PH MOTOR M3161T

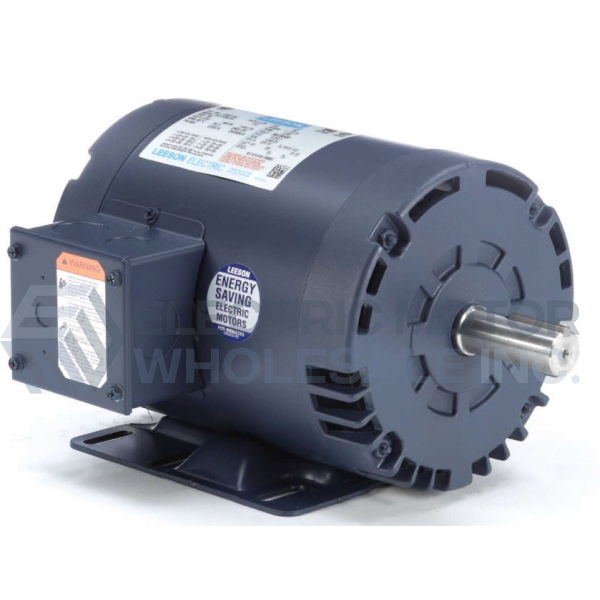

Click Image to Enlarge
Manufacturer Part Number: M3161T
Stock # M3161T
