3/4HP BALDOR 1425RPM 56 OPEN 3PH 50HZ MOTOR M3112-50

3/4HP BALDOR 1425RPM 56 OPEN 3PH 50HZ MOTOR M3112-50

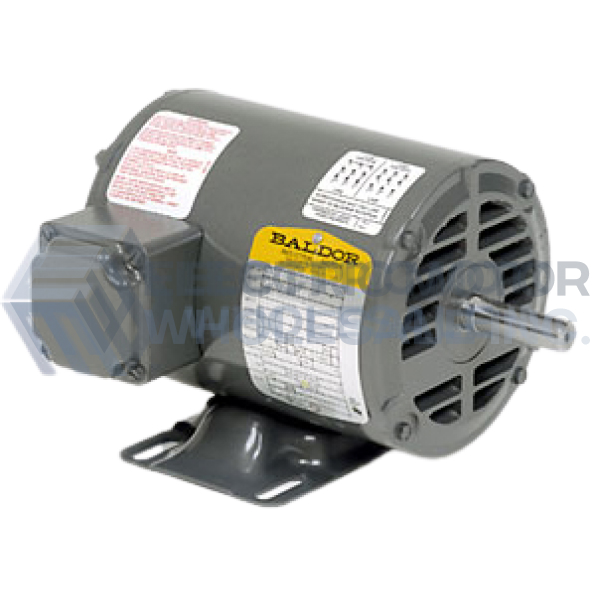

Picture is for reference only.

Part Number:

M3112-50

Model/Spec Number:

34F779-4341

Manufacturer:

Baldor Obsolete Motors
M3112-50 BALDOR 3/4HP Three Phase Motor is designed for 50Hz applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

26 lbs

Dimensions:

17 x 23 x 13 inches

HS Code:

8501.51.4040

UPC:

781568120132

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

3/4

Output KW:

0.55

Output RPM:

1425

Frame Size NEMA:

56

Mount NEMA:

With Base

Enclosure NEMA:

OPEN

Enclosure IEC:

IP22

Voltage:

220/380, 440

M3112-50-InfoPacket

APPLICATIONS: Pumps, fans, conveyors, machine tools, gear reducers where only 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • 5/8" Shaft diameter
  • Ball bearings
  • High temperature insulation
  • Copper windings
