10HP BALDOR 3500RPM 254U TEFC 3PH MOTOR M2393
| Catalog Number: | M2393 |
| Description: | 10HP,3500RPM,254U,TEFC,3PH,60HZ |
| Ship Weight: | 171 lbs. |
| SPEC. NUMBER: | 07H287X136H1 |
| CATALOG NUMBER: | M2393 |
| FL AMPS: | 25-23/11.5 |
| 208V AMPS: | 25 |
| BEARING-DRIVE-END: | 6309 |
| BEARING-OPP-DRIVE-END: | 6307 |
| DESIGN CODE: | B |
| DOE-CODE: | 010A |
| FL EFFICIENCY: | 89.5 |
| ENCLOSURE: | TEFC |
| FRAME: | 254U |
| HERTZ: | 60 |
| INSULATION-CLASS: | F |
| KVA-CODE: | H |
| SPEED [rpm]: | 3500 |
| OUTPUT [hp]: | 10 |
| PHASE: | 3 |
| POWER-FACTOR: | 91 |
| RATING: | 40C AMB-CONT |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.15 |
| VOLTAGE: | 208-230/460 |
APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
FEATURES:
- Ball bearings
- Suitable for mounting any position
- Heavy duty cast iron frames

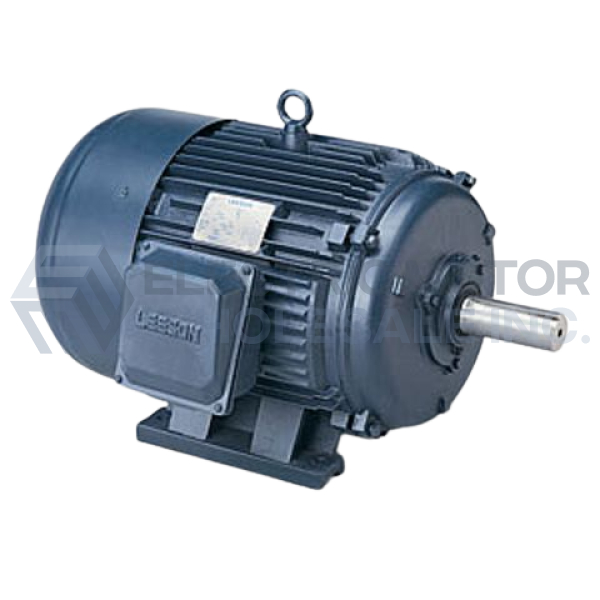

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M2393
Stock # M2393
