20HP BALDOR 1460RPM 256T TEFC 50HZ 3PH MOTOR M2334T-50

20HP BALDOR 1460RPM 256T TEFC 50HZ 3PH MOTOR M2334T-50

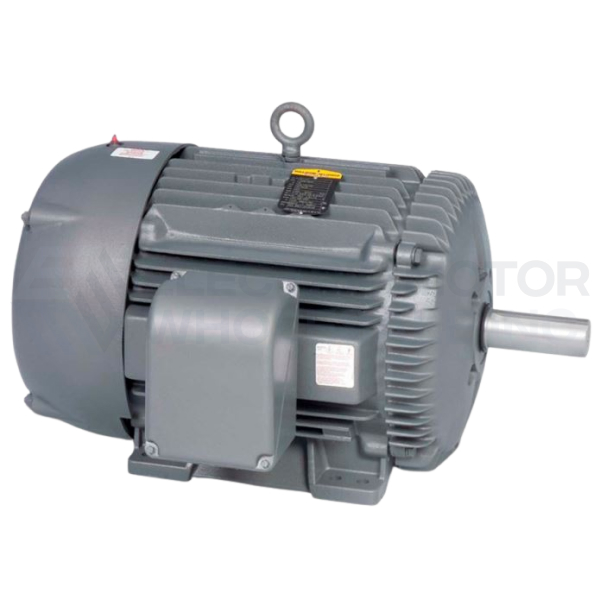

Picture is for reference only.

Part Number:

M2334T-50

Model/Spec Number:

09F103Y398G1

Manufacturer:

Baldor Obsolete Motors
M2334T-50 BALDOR 20HP Electric motor designed for pumps, compressors, fans, conveyors, machine tools and other applications where only 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of +- 15% on voltage.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

286 lbs

Dimensions:

24 x 36 x 24 inches

HS Code:

8501524000

UPC:

781568147467

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

20

Output RPM:

1460

Frame Size NEMA:

256T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

220/380/440

Frequency (Hz):

50

M2334T-50-InfoPacket

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
