15HP BALDOR 1460RPM 254T TEFC 50HZ 3PH MOTOR M2333T-50

15HP BALDOR 1460RPM 254T TEFC 50HZ 3PH MOTOR M2333T-50

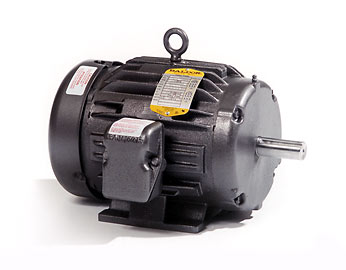

Picture is for reference only.

Part Number:

M2333T-50

Model/Spec Number:

07H203X997G1

Manufacturer:

Baldor Obsolete Motors
M2333T-50 BALDOR 15HP Electric motor designed for pumps, compressors, fans, conveyors, machine tools and other applications where only 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of +- 15% on voltage.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

236 lbs

Dimensions:

24 x 26 x 16 inches

HS Code:

8501524000

UPC:

781568120118

Technical Details

Brand:

Baldor

Output HP:

15

Output RPM:

1460

Frame Size NEMA:

254T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

220/380/440

Frequency (Hz):

50

Efficiency:

89.8

M2333T-50-InfoPacket

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
