1.5/.375HP BALDOR 1735/865RPM 145T TEFC 460V 3PH MOTOR M1755T

Catalog Number:  M1755T
Spec Number:  35AA001P581
Description:  1.5/.375HP,1735/865RPM,145T,TEFC,460V,3PH,60HZ,TWO SPEED
Ship Weight:  38 lbs.

APPLICATIONS: Designed for use in applications in which multiple speeds are required. Ideal with fans, blowers, machine tools, hoists, conveyors, pumps, where three phase power is available.

FEATURES:

  • Heavy duty steel frame
  • Copper windings
  • 7/8" Keyed output shaft
  • Dynamically balanced rotor
SPEC. NUMBER: 35AA001P581
CATALOG NUMBER: M1755T
FL AMPS: 2.34/1.02
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: -
DOE-CODE: --
FL EFFICIENCY: --
ENCLOSURE: TEFC
FRAME: 145T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1735/865
OUTPUT [hp]: 1.5/.375
PHASE: 3
POWER-FACTOR: --
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 460
1.5/.375HP BALDOR 1735/865RPM 145T TEFC 460V 3PH MOTOR M1755T

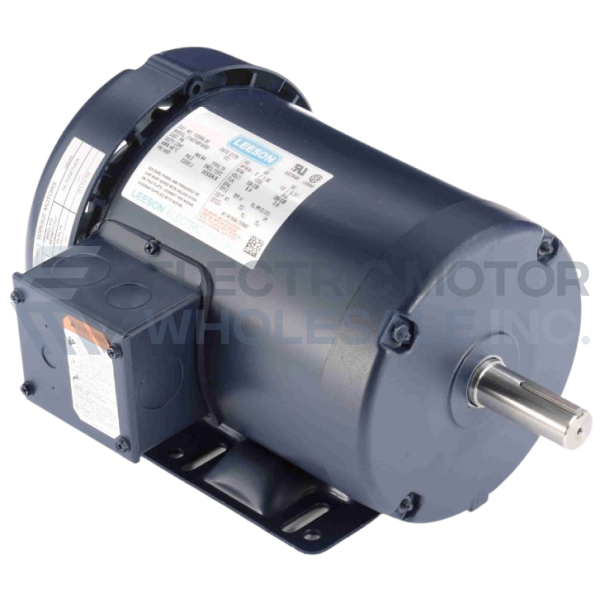

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1755T
Stock # M1755T
Price: $557.00
Compare At: $959.00
