3/.75HP BALDOR 1725/850RPM 184T TEFC 230V 3PH MOTOR M1557T

Catalog Number:  M1557T
Spec Number:  36A01X365
Description:  3/.75HP,1725/850RPM,184T,TEFC,208-230V,3PH,60HZ,TWO SPEED
Ship Weight:  65 lbs.

APPLICATIONS: Designed for use in applications in which multiple speeds are required. Ideal with fans, blowers, machine tools, hoists, conveyors, pumps, where three phase power is available.

FEATURES:

  • Heavy duty steel frame
  • Copper windings
  • 1 1/8" Keyed output shaft
  • Dynamically balanced rotor
CATALOG NUMBER: M1557T
FL AMPS: 8/3
208V AMPS: --
BEARING-DRIVE-END: 6206
BEARING-OPP-DRIVE-END: 6205
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: --
ENCLOSURE: TEFC
FRAME: 184T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: G
SPEED [rpm]: 1725/850
OUTPUT [hp]: 3/.75
PHASE: 3
POWER-FACTOR: --
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPEC. NUMBER: 36A01X365
VOLTAGE: 208-230
3/.75HP BALDOR 1725/850RPM 184T TEFC 230V 3PH MOTOR M1557T

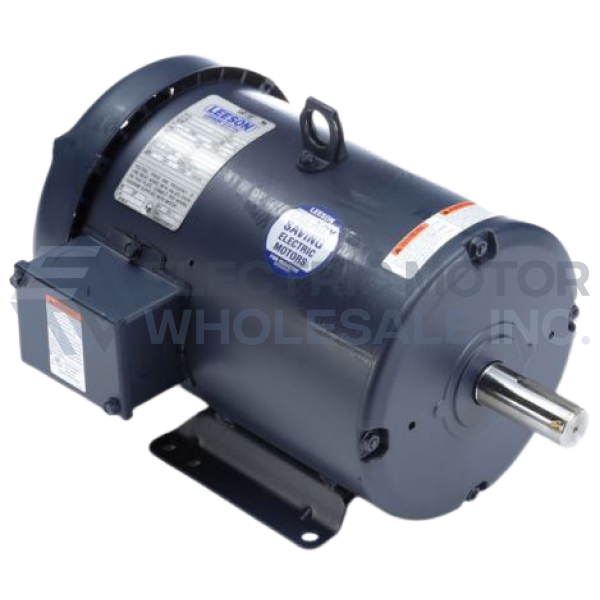

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1557T
Stock # M1557T
Price: $696.00
Compare At: $1,197.00
