25/11HP BALDOR 1760/1160RPM 286T ODP 460V 3PH MOTOR M1229T
25/11HP BALDOR 1760/1160RPM 286T ODP 460V 3PH MOTOR M1229T

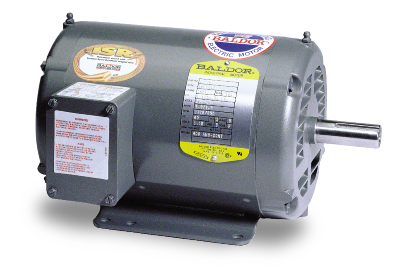

Picture is for reference only.
Part Number:
M1229TManufacturer:
Baldor Obsolete MotorsManufacturer Part Number:
M1229TThis is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
13 x 22 x 13 inchesTechnical Details
Specifications
Application: | Two Speed |
Output HP: | 25 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 284-6T |
Mount NEMA: | With Base |
Enclosure NEMA: | DP, ODP, OPEN, OPSB |
Voltage: | 460 |
Frequency (Hz): | 60 |
Efficiency: | IE2: High Eff. |
Thermal Protection: | None |
Documentation
Additional Information
| Catalog Number: | M1229T |
| Description: | 25/11HP,1760/1160RPM,286T,ODP,460V,3PH,60HZ,TWO SPEED |
| Ship Weight: | 332 lbs. |
APPLICATIONS: Designed for use with fans, blowers, pumps, and where three phase power is available.
FEATURES:
- Heavy duty steel frame
- Lifting eye bolt mounted at top center 215T frame and larger for easy handling
- Copper windings
- Dynamically balanced rotor
| SPEC. NUMBER: | 40D101X163 |
| CATALOG NUMBER: | M1229T |
| FL AMPS: | 30/21 |
| 208V AMPS: | -- |
| BEARING-DRIVE-END: | 6311 |
| BEARING-OPP-DRIVE-END: | 6309 |
| DESIGN CODE: | A |
| DOE-CODE: | -- |
| FL EFFICIENCY: | -- |
| ENCLOSURE: | OPSB |
| FRAME: | 286T |
| HERTZ: | 60 |
| INSULATION-CLASS: | B |
| KVA-CODE: | K |
| SPEED [rpm]: | 1760/1160 |
| OUTPUT [hp]: | 25/11 |
| PHASE: | 3 |
| POWER-FACTOR: | -- |
| RATING: | 40C AMB-CONT |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.15 |
| VOLTAGE: | 460 |
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
13 x 22 x 13 inches
