1.5HP BALDOR 1725RPM 184 TEFC 1PH MOTOR L3603

1.5HP BALDOR 1725RPM 184 TEFC 1PH MOTOR L3603

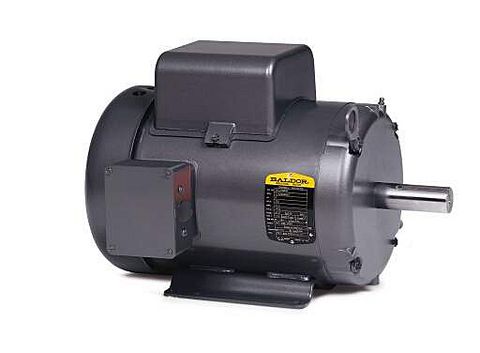

Picture is for reference only.

Part Number:

L3603

Model/Spec Number:

36C11-79

Manufacturer:

Baldor Obsolete Motors
L3603 BALDOR 1.5HP General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

Item Discontinued

Click below to request an agent review potential options.

Weight:

66 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

781568100592

Technical Details

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame NEMA:

184

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Voltage:

115/230

Frequency (Hz):

60

Mount Arrangement:

F1

L3603-InfoPacket

APPLICATIONS: General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

FEATURES:

  • Heavy gauge steel frames
  • Ball bearings
  • Base is seam welded to frame
  • "Snap Action" starting switch for reliability

Item Discontinued

Click below to request an agent review potential options.

Weight:

66 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

781568100592
