2HP BALDOR 3450RPM 56/56H TEFC 1PH MOTOR L3515M

Catalog Number:  L3515M
Description:  2HP,3450RPM,56/56H,TEFC,1PH,60HZ
Ship Weight:  52 lbs.

APPLICATIONS: General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

FEATURES:

  • Heavy gauge steel frames
  • Ball bearings
  • Base is seam welded to frame
  • "Snap Action" starting switch for reliability
SPEC. NUMBER: 35J383-2013
CATALOG NUMBER: L3515M
FL AMPS: 23/11.5
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: L
DOE-CODE: --
FL EFFICIENCY: 74
ENCLOSURE: TEFC
FRAME: 56/56H
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: K
SPEED [rpm]: 3450
OUTPUT [hp]: 2
PHASE: 1
POWER-FACTOR: 82
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
VOLTAGE: 115/230

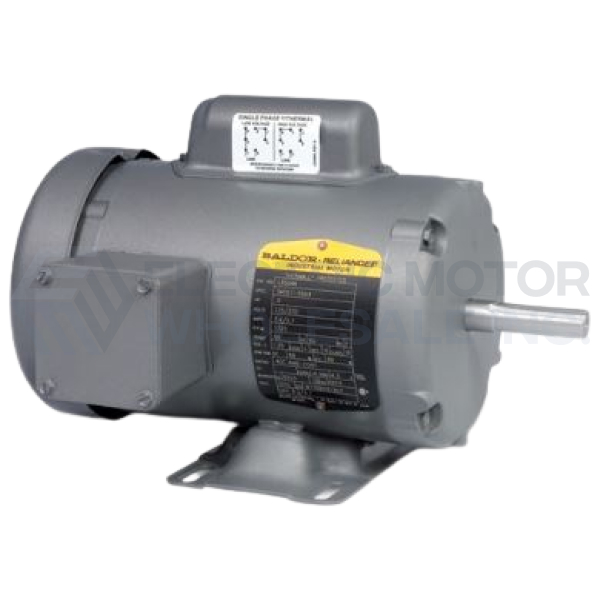

2HP BALDOR 3450RPM 56/56H TEFC 1PH MOTOR L3515M
Click Image to Enlarge
Manufacturer Part Number: L3515M
Stock # L3515M
Price: $466.00
Compare At: $827.00
