3HP BALDOR 1140RPM 215 OPEN 1PH MOTOR L1506

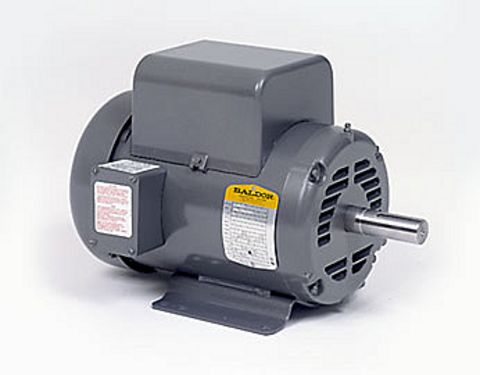

3HP BALDOR 1140RPM 215 OPEN 1PH MOTOR L1506

Picture is for reference only.

Part Number:

L1506

Model/Spec Number:

37E08-471

Manufacturer:

Baldor Obsolete Motors
L1506 BALDOR 3HP Electric motor designed for compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc. where single phase power is available.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

111 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

781568101636

Technical Details

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

1140

Frame NEMA:

215

Mount NEMA:

Base Mount

Enclosure NEMA:

OPEN

Voltage:

115/230

Frequency (Hz):

60

Mount Arrangement:

F1

L1506-InfoPacket

APPLICATIONS: General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc. where single phase power is available.

FEATURES:

  • Copper windings
  • Rotors dynamically balanced
  • Ball bearings
  • Heavy gauge steel frame construction
