1.5HP BALDOR 1725RPM 56/56H OPEN 1PH MOTOR L1319M

BALDOR Catalog Number:  L1319M
Description:  1.5HP,1725RPM,56/56H,OPEN,1PH,60HZ
Ship Weight:  43 lbs.

APPLICATIONS: General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc. where single phase power is available.

FEATURES:

  • Copper windings
  • Manual overload protection
  • Rotors dynamically balanced
  • Ball bearings
  • Heavy gauge steel frame construction
SPEC. NUMBER:  35J384-2444
CATALOG NUMBER:  L1319M
FL AMPS:  18/9
208V AMPS:  --
BEARING-DRIVE-END:  6205
BEARING-OPP-DRIVE-END:  6203
DESIGN CODE:  L
DOE-CODE:  --
FL EFFICIENCY:  68
ENCLOSURE:  OPEN
FRAME:  56/56H
HERTZ:  60
INSULATION-CLASS:  B
KVA-CODE:  K
SPEED [rpm]:  1725
OUTPUT [hp]:  1.5
PHASE:  1
POWER-FACTOR:  74
RATING:  40C AMB-CONT
SERIAL-NUMBER:  --
SERVICE FACTOR:  1.15
VOLTAGE:  115/230
1.5HP BALDOR 1725RPM 56/56H OPEN 1PH MOTOR L1319M

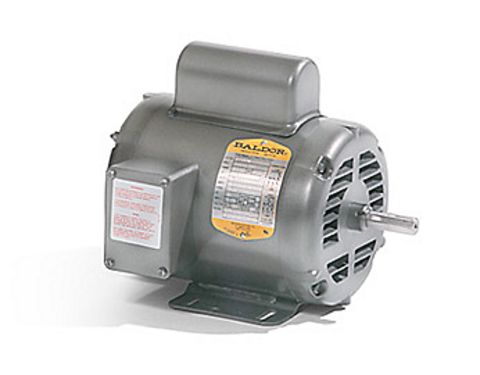

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: L1319M
Stock # L1319M
Price: $400.00
Compare At: $707.00
