1/4HP BALDOR 1725RPM 48 OPEN 1PH MOTOR L1203

1/4HP BALDOR 1725RPM 48 OPEN 1PH MOTOR L1203

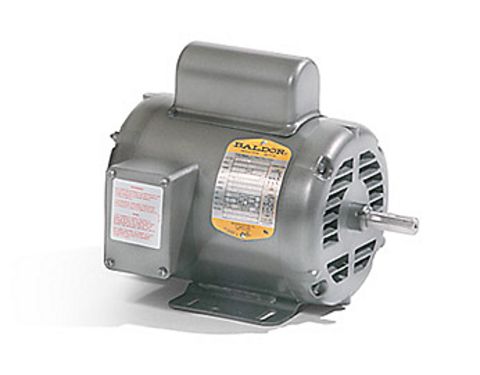

Picture is for reference only.

Part Number:

L1203

Model/Spec Number:

34F001S070

Manufacturer:

Baldor Obsolete Motors
L1203 BALDOR 1/4HP Electric motor designed for compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc. where single phase power is available.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

21 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501404040

UPC:

781568100950

Technical Details

Application:

General Purpose

Output HP:

1/4

Output KW:

.19

Output RPM:

1725

Frame NEMA:

48

Mount NEMA:

Base Mount

Enclosure NEMA:

OPEN

Voltage:

115/230

Frequency (Hz):

60

Efficiency:

59.5

L1203-InfoPacket

APPLICATIONS: General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc. where single phase power is available.

FEATURES:

  • Copper windings
  • Rotors dynamically balanced
  • Ball bearings
  • Heavy gauge steel frame construction
