10HP BALDOR 1770RPM 215JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR JMSSEWDM3714T

10HP BALDOR 1770RPM 215JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR JMSSEWDM3714T

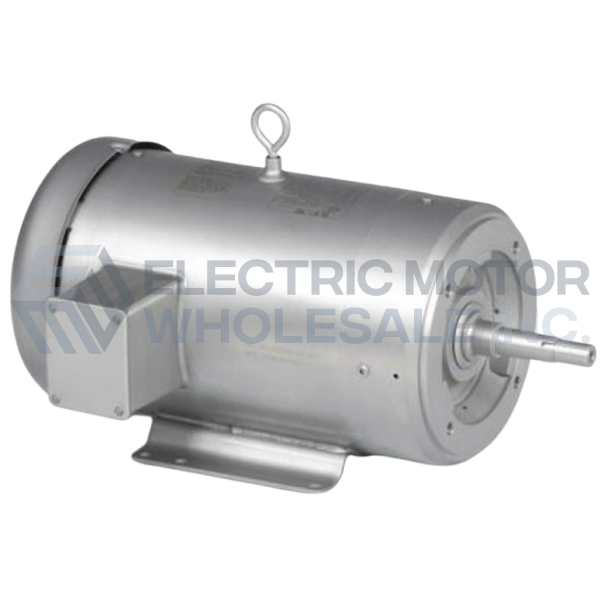

Picture is for reference only.

Part Number:

JMSSEWDM3714T

Model/Spec Number:

37J863S251G1

Manufacturer:

Baldor Obsolete Motors
JMSSEWDM3714T BALDOR 10HP Close coupled pump motor is designed for commercial and industrial water pumps, food processing and applications that expose the motor to high pressure washdown.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

187 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501524000

UPC:

781568488591

Technical Details

Brand:

Baldor

Application:

Stainless Close Coupled

Output HP:

10

Output KW:

7.5

Output RPM:

1770

Frame Size NEMA:

215JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP69

Voltage:

230/460

JMSSEWDM3714T-InfoPacket

APPLICATIONS: Designed for use with Commercial and industrial water pumps, food processing and applications that expose the motor to high pressure washdown.

Features:

  • Stainless steel motor frame, endplates, conduit box, shaft and base
  • Moisture resistant ISR®
  • Hydrophobic aspiration system
  • Endplate rabbets have O-ring seals
  • Conduit box is welded to the motor frame
  • Patented bearing seal to protect motor bearings
  • Epoxy encapsulation
  • Laser etched nameplate
  • NEMA Premium® efficiency
  • 3 year warranty
