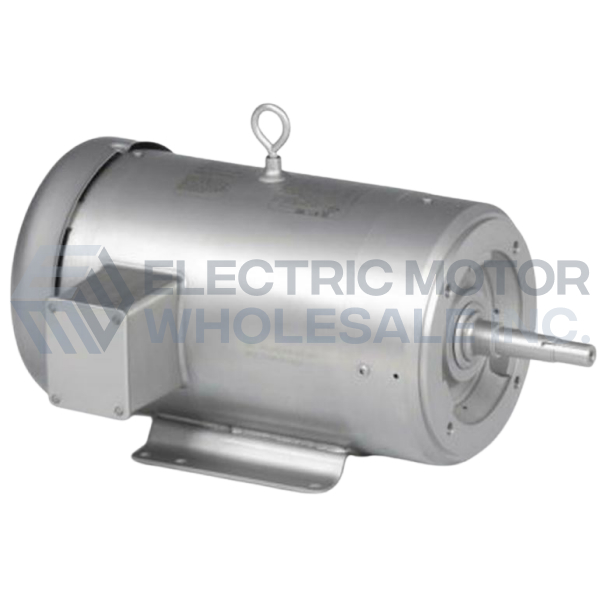

5HP BALDOR 3500RPM 184JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR JMSSEWDM3613T

5HP BALDOR 3500RPM 184JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR JMSSEWDM3613T

Picture is for reference only.

Part Number:

JMSSEWDM3613T

Model/Spec Number:

36G579T149G1

Manufacturer:

Baldor Obsolete Motors
JMSSEWDM3613T BALDOR 5HP Close coupled pump motor is designed for commercial and industrial water pumps, food processing and applications that expose the motor to high pressure washdown.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

104 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501524000

UPC:

781568490426

Technical Details

Brand:

Baldor

Application:

Stainless Close Coupled

Output HP:

5

Output KW:

3.7

Output RPM:

3500

Frame Size NEMA:

184JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP69

Voltage:

230/460

JMSSEWDM3613T-InfoPacket

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with Commercial and industrial water pumps, food processing and applications that expose the motor to high pressure washdown.

Features:

  • Stainless steel motor frame, endplates, conduit box, shaft and base
  • Moisture resistant ISR®
  • Hydrophobic aspiration system
  • Endplate rabbets have O-ring seals
  • Conduit box is welded to the motor frame
  • Patented bearing seal to protect motor bearings
  • Epoxy encapsulation
  • Laser etched nameplate
  • NEMA Premium® efficiency
  • 3 year warranty
