3HP BALDOR 1760RPM 182JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR JMSSEWDM3611T

3HP BALDOR 1760RPM 182JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR JMSSEWDM3611T

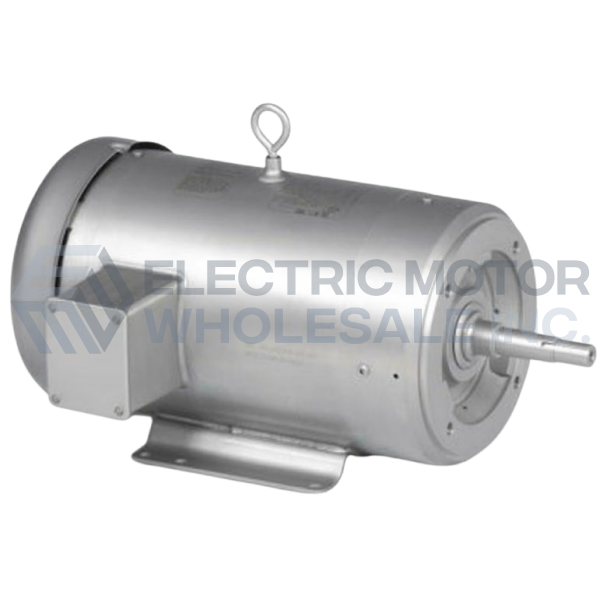

Picture is for reference only.

Part Number:

JMSSEWDM3611T

Model/Spec Number:

36G579S987G1

Manufacturer:

Baldor Obsolete Motors
JMSSEWDM3611T BALDOR 3HP Close coupled pump motor is designed for commercial and industrial water pumps, food processing and applications that expose the motor to high pressure washdown.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

108 lbs

Dimensions:

23 x 18 x 14 inches

HS Code:

8501524000

UPC:

781568489536

Technical Details

Brand:

Baldor

Application:

Stainless Close Coupled

Output HP:

3

Output KW:

2.2

Output RPM:

1760

Frame Size NEMA:

182JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP69

Voltage:

230/460

JMSSEWDM3611T-InfoPacket

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with Commercial and industrial water pumps, food processing and applications that expose the motor to high pressure washdown.

Features:

  • Stainless steel motor frame, endplates, conduit box, shaft and base
  • Moisture resistant ISR®
  • Hydrophobic aspiration system
  • Endplate rabbets have O-ring seals
  • Conduit box is welded to the motor frame
  • Patented bearing seal to protect motor bearings
  • Epoxy encapsulation
  • Laser etched nameplate
  • NEMA Premium® efficiency
  • 3 year warranty
