40HP BALDOR 1770RPM 324JM TEFC 3PH MOTOR JMM4110T

Catalog Number:  JMM4110T
Description:  40HP,1770RPM,324JM,TEFC,3PH,60HZ
Ship Weight:  486 lbs.

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

  • Heavy gauge steel frame
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Close coupled pump motors are furnished with rodent screens at both ends
SPEC. NUMBER: 10F606X908G1
CATALOG NUMBER: JMM4110T
FL AMPS: 94/47
208V AMPS: 101
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6309
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 93
ENCLOSURE: TEFC
FRAME: 324JM
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: G
SPEED [rpm]: 1770
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 85
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

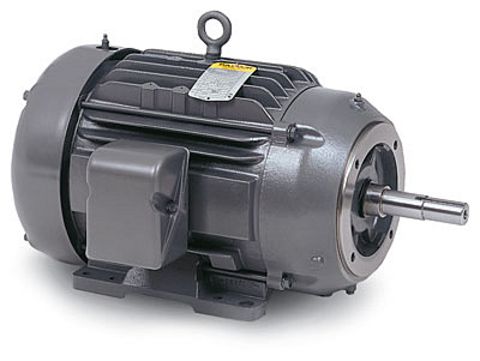

40HP BALDOR 1770RPM 324JM TEFC 3PH MOTOR JMM4110T
Click Image to Enlarge
Manufacturer Part Number: JMM4110T
Stock # JMM4110T
