40HP BALDOR 3520RPM 324JM TEFC 3PH PUMP MOTOR JMM4109T

40HP BALDOR 3520RPM 324JM TEFC 3PH PUMP MOTOR JMM4109T

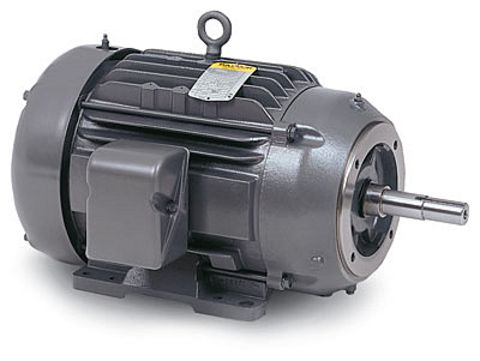

Picture is for reference only.

Part Number:

JMM4109T

Model/Spec Number:

10F606X657

Manufacturer:

Baldor Obsolete Motors
JMM4109T BALDOR 40HP Close Coupled Motor is designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

460 lbs

Dimensions:

16 x 24 x 16 inches

HS Code:

8501.52.0000

UPC:

781568217856

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

40

Output KW:

30

Output RPM:

3520

Frame Size NEMA:

324JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230/460

Product Information Packet

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

  • Heavy gauge steel frame
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Close coupled pump motors are furnished with rodent screens at both ends
