Home > Electric Motors > Discontinued Electric Motors > Baldor Discontinued AC Motors > 30HP BALDOR 1760RPM 286JM TEFC 3PH MOTOR JMM4104T

30HP BALDOR 1760RPM 286JM TEFC 3PH MOTOR JMM4104T

BALDOR JMM4104T has been superseded by EJMM4104T

Catalog Number:  JMM4104T
Description:  30HP,1760RPM,286JM,TEFC,3PH,60HZ
Ship Weight:  335 lbs.
SPEC. NUMBER: 09F823Y208G1
CATALOG NUMBER: JMM4104T
FL AMPS: 72/36
208V AMPS: 77.4
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6208
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 92.4
ENCLOSURE: TEFC
FRAME: 286JM
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1760
OUTPUT [hp]: 30
PHASE: 3
POWER-FACTOR: 84
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

  • Heavy gauge steel frame
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Close coupled pump motors are furnished with rodent screens at both ends

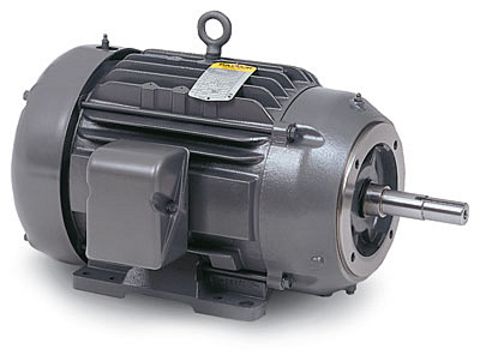

30HP BALDOR 1760RPM 286JM TEFC 3PH MOTOR JMM4104T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: JMM4104T
Stock # JMM4104T
