25HP BALDOR 1760RPM 284JM TEFC 3PH PUMP MOTOR JMM4103T
25HP BALDOR 1760RPM 284JM TEFC 3PH PUMP MOTOR JMM4103T

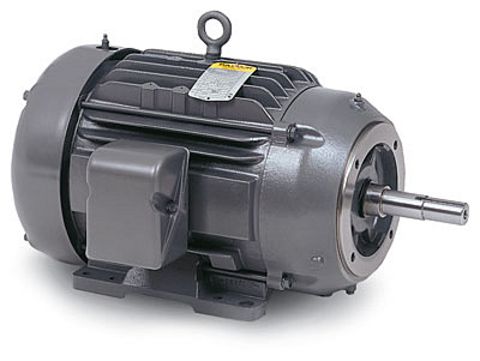

Picture is for reference only.
Part Number:
JMM4103TModel/Spec Number:
09F823Y900G1Manufacturer:
Baldor Obsolete MotorsClick below to view suggested functional replacement.
Shipping Details
Weight:
366 lbsDimensions:
16 x 24 x 16 inchesHS Code:
8501.52.0000UPC:
781568218693Technical Details
Specifications
Brand: | Baldor |
Application: | Closed Coupled |
Output HP: | 25 |
Output KW: | 18.5 |
Output RPM: | 1760 |
Frame Size NEMA: | 284JM |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP44 |
Voltage: | 230/460 |
Documentation
Additional Information
APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.
FEATURES:
- Heavy Duty Cast Iron frame
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Over-sized ball bearings with locked drive end construction to minimize endplay
- Low-loss electrical grade lamination steel
- Close coupled pump motors are furnished with rodent screens at both ends
Replacement Parts
Click below to view suggested functional replacement.
Shipping Details
Weight:
366 lbsDimensions:
16 x 24 x 16 inchesHS Code:
8501.52.0000UPC:
781568218693
