2HP BALDOR 1750RPM 145JM TEFC 3PH PUMP MOTOR JMM3558T

2HP BALDOR 1750RPM 145JM TEFC 3PH PUMP MOTOR JMM3558T

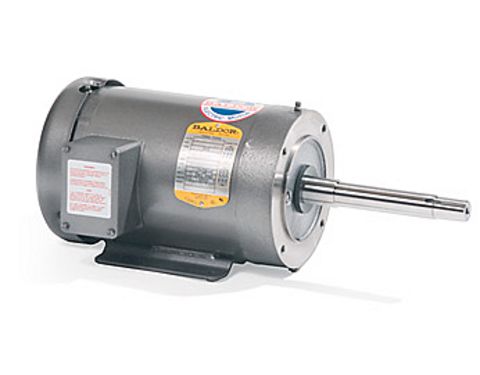

Picture is for reference only.

Part Number:

JMM3558T

Model/Spec Number:

35M019N917H1

Manufacturer:

Baldor Obsolete Motors
JMM3558T BALDOR 2HP Pump Motor designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

46 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501524000

UPC:

781568113332

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

2

Output KW:

1.5

Output RPM:

1750

Frame Size NEMA:

145JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

JMM3558T-InfoPacket

Obsolete 35M019P692H1

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

  • Heavy gauge steel frames
  • 7/8" shaft output diameter
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • 3 year warranty
