1HP BALDOR 1750RPM 143JM TEFC MOTOR JMM3546T

BALDOR JMM3546T has been superseded by EJMM3546T

Catalog Number:  JMM3546T
Description:  1HP,1750RPM,3PH,60HZ,143JM,TEFC
Ship Weight:  39 lbs.
SPEC. NUMBER: 35M019P674H1
CATALOG NUMBER: JMM3546T
FL AMPS: 3.38-3.12/1.56
208V AMPS: --
BEARING-DRIVE-END: 6206
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 82.5
ENCLOSURE: TEFC
FRAME: 143JM
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 1750
OUTPUT [hp]: 1
PHASE: 3
POWER-FACTOR: 73
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

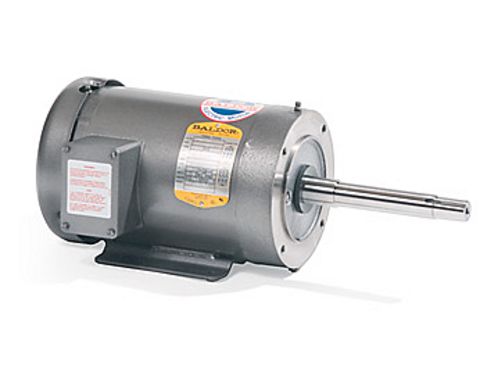

1HP BALDOR 1750RPM 143JM TEFC MOTOR JMM3546T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: JMM3546T
Stock # JMM3546T
