JMM3313T BALDOR 10HP 3PH PUMP MOTOR 37K976S131H1

Electric Motors

Discontinued Electric Motors

Baldor Discontinued Motors

10HP BALDOR 1765RPM 215JM OPSB 3PH PUMP MOTOR JMM3313T

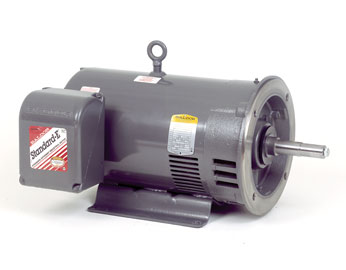

Picture is for reference only.

Part Number:

JMM3313T

Model/Spec Number:

37K976S131H1

Manufacturer:

Baldor Obsolete Motors

JMM3313T BALDOR 10HP Pump motor designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

121 lbs

Dimensions:

14 x 26 x 14 inches

HS Code:

8501.52.4000

UPC:

781568114063

Technical Details

Specifications

Brand:	Baldor
Application:	Closed Coupled
Output HP:	10
Output KW:	7.5
Output RPM:	1765
Frame Size NEMA:	215JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	OPSB
Enclosure IEC:	IP22
Voltage:	208-230/460

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

Heavy gauge steel frame
Moisture resistant ISR® (Inverter Spike Resistant) copper windings
Over-sized ball bearings with locked drive end construction to minimize endplay
Low-loss electrical grade lamination steel
Open drip-proof close coupled pump motors are furnished with rodent screens at both ends
