JMM3311T BALDOR 7.5HP 3PH PUMP MOTOR 36M900S915H1

Electric Motors

Discontinued Electric Motors

Baldor Discontinued Motors

7.5HP BALDOR 1750RPM 213JM OPSB 3PH PUMP MOTOR JMM3311T

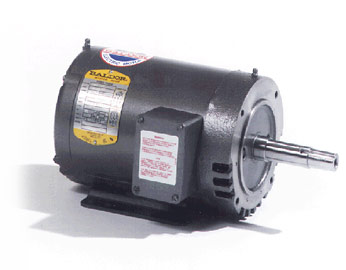

Picture is for reference only.

Part Number:

JMM3311T

Model/Spec Number:

36M900S915H1

Manufacturer:

Baldor Obsolete Motors

JMM3311T BALDOR 7.5HP Pump motor designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

106 lbs

Dimensions:

14 x 26 x 14 inches

HS Code:

8501.52.4000

UPC:

781568113998

Technical Details

Specifications

Brand:	Baldor
Application:	Closed Coupled
Output HP:	7.5
Output KW:	5.5
Output RPM:	1750
Frame Size NEMA:	213JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	OPSB
Enclosure IEC:	IP22
Voltage:	208-230/460

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

Heavy gauge steel frame
Moisture resistant ISR® (Inverter Spike Resistant) copper windings
Over-sized ball bearings with locked drive end construction to minimize endplay
Low-loss electrical grade lamination steel
Open drip-proof close coupled pump motors are furnished with rodent screens at both ends
