20HP BALDOR 1760RPM 256JM OPSB 3PH PUMP MOTOR JMM2515T

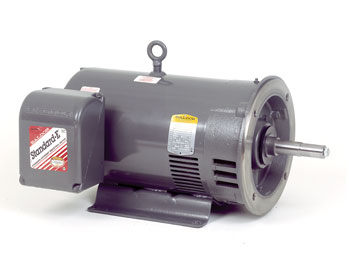

Picture is for reference only.

Part Number:

JMM2515T

Model/Spec Number:

37J642R292H1

Manufacturer:

Baldor Obsolete Motors

JMM2515T BALDOR 20HP Pump Motor designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

197 lbs

Dimensions:

14 x 26 x 14 inches

HS Code:

8501.52.4000

UPC:

781568114179

Technical Details

Specifications

Brand:	Baldor
Application:	Closed Coupled
Output HP:	20
Output KW:	15
Output RPM:	1760
Frame Size NEMA:	256JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	OPSB
Enclosure IEC:	IP22
Voltage:	230/460

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

FEATURES:

Heavy gauge steel frame
Moisture resistant ISR® (Inverter Spike Resistant) copper windings
Over-sized ball bearings with locked drive end construction to minimize endplay
Low-loss electrical grade lamination steel
Open drip-proof close coupled pump motors are furnished with rodent screens at both ends
