3/4HP BALDOR 3600RPM 56J OPEN 208-230/460V 3PH MOTOR JM3111

Catalog Number:  JM3111
Specification Number:  34F38-2719
Description:  3/4HP,3450RPM,56J,OPEN,208-230/460V,3PH,60HZ,JET PUMP
Ship Weight:  23 lbs.

APPLICATIONS: Residential and industrial pumps, swimming pool pumps, etc where three phase power is available.

FEATURES:

  • Corrosion resistant stainless steel shaft extension
  • Slotted opposite DE shaft for easy installation
  • Dynamically balanced rotor to reduce noise and increase bearing life
  • Optimized airflow design providing higher horsepower in a smaller package
  • Copper windings
SPEC. NUMBER: 34F38-2719
CATALOG NUMBER: JM3111
FL AMPS: 3.2-3/1.5
208V AMPS: 4
BEARING-DRIVE-END: 6203
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 74
ENCLOSURE: OPEN
FRAME: 56J
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: M
SPEED [rpm]: 3450
OUTPUT [hp]: .75
PHASE: 3
POWER-FACTOR: 66
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.50
VOLTAGE: 208-230/460
3/4HP BALDOR 3600RPM 56J OPEN 208-230/460V 3PH MOTOR JM3111

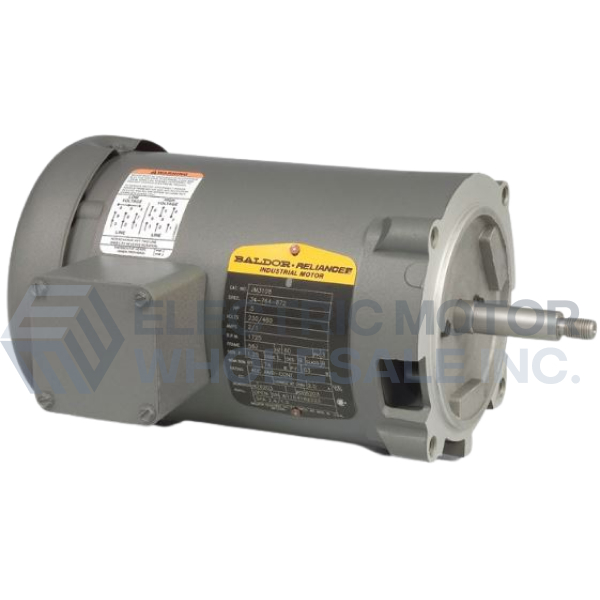

Click Image to Enlarge
Manufacturer Part Number: JM3111
Stock # JM3111
Price: $282.30
Compare At: $401.00
