Electric Motors

/

Discontinued Electric Motors

/

Baldor Discontinued Motors

/

20HP BALDOR 1770RPM 284T XPFC 3PH EXPLOSION PROOF MOTOR IDXM7556T

20HP BALDOR 1770RPM 284T XPFC 3PH EXPLOSION PROOF MOTOR IDXM7556T

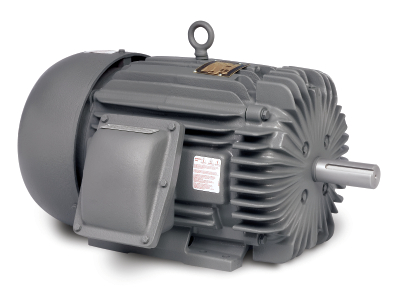

Picture is for reference only.

Part Number:

IDXM7556T

Model/Spec Number:

10E647Y137G2

Manufacturer:

Baldor Obsolete Motors
IDXM7556T BALDOR 20HP Explosion Proof Motors are suitable to stand up against the most demanding industrial environments where protection against the elements and condensation is needed.

Item Discontinued

Click below to request an agent review potential options.

Weight:

526 lbs

Dimensions:

24 x 32 x 24 inches

HS Code:

8501.52.4000

UPC:

781568219218

Technical Details

Brand:

Baldor

Application:

Explosion Proof

Output HP:

20

Output KW:

15

Output RPM:

1770

Frame Size NEMA:

284T

Mount NEMA:

With Base

Enclosure NEMA:

XPFC

Enclosure IEC:

IP55

Voltage:

230/460

IDXM7556T-InfoPacket

Explosion-Proof-Definitions

APPLICATIONS: Designed for use in hazardous locations with Inverters with a 10:1 Constant Torque and Variable Torque Rating. Ideal for use on conveyors, pumps and other equipment in food processing and other severe environments where motors are "washed" on a regular basis. For adjustable speed applications not requiring full torque at zero speed.

FEATURES:

  • U.L. and CSA approved for hazardous locations
  • Class I, Group D, T2B
  • Temperature rating T3C (160°C)
  • 3HP and larger Class I, Group D only
  • Temperature Code T2A(280°C)
  • 1.0 service factor
  • Class F insulation
  • Thermostats
  • All ratings constant horsepower 60 to 90 Hz.
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
