75HP BALDOR 1785RPM 405T XPFC 3PH EXPLOSION PROOF MOTOR IDXM7068T
75HP BALDOR 1785RPM 405T XPFC 3PH EXPLOSION PROOF MOTOR IDXM7068T

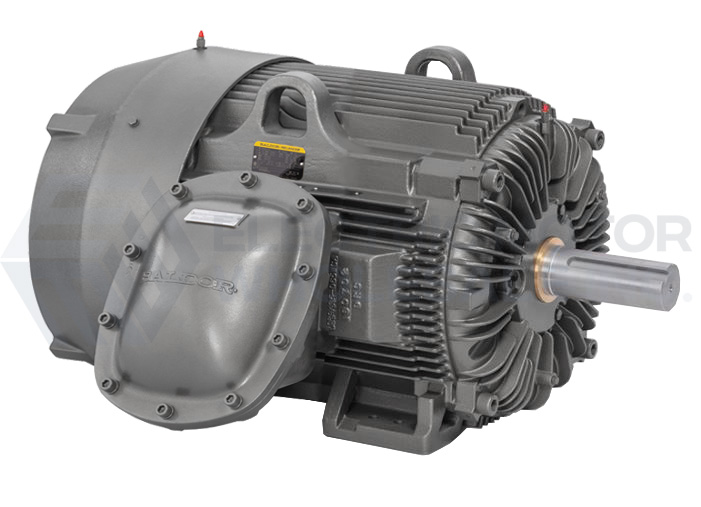

Picture is for reference only.
Part Number:
IDXM7068TModel/Spec Number:
P40G4868Manufacturer:
Baldor Obsolete MotorsClick below to request an agent review potential options.
Shipping Details
Weight:
1,391 lbsDimensions:
24 x 36 x 24 inchesHS Code:
8501528040UPC:
781568199879Technical Details
Specifications
Brand: | Baldor |
Application: | Explosion Proof |
Output HP: | 75 |
Output KW: | 55 |
Output RPM: | 1785 |
Frame Size NEMA: | 405T |
Mount NEMA: | With Base |
Enclosure NEMA: | XPFC |
Enclosure IEC: | IP55 |
Voltage: | 230/460 |
Documentation
Additional Information
APPLICATIONS: Designed for use in hazardous locations with Inverters with a 2:1 Constant Torque, 10:1 Variable Torque Rating. Ideal for use on conveyors, pumps and other equipment in food processing and other severe environments where motors are "washed" on a regular basis. For adjustable speed applications not requiring full torque at zero speed.
FEATURES:
- U.L. and CSA approved for hazardous locations
- Class I, Group D, T2B
- Temperature rating T3C (160°C)
- 3HP and larger Class I, Group D only
- Temperature Code T2A(280°C)
- 1.0 service factor
- Class F insulation
- Thermostats
- All ratings constant horsepower 60 to 90 Hz.
- ISR® (Inverter Spike Resistant) magnet wire
- Meets NEMA MG 1, Part 31
