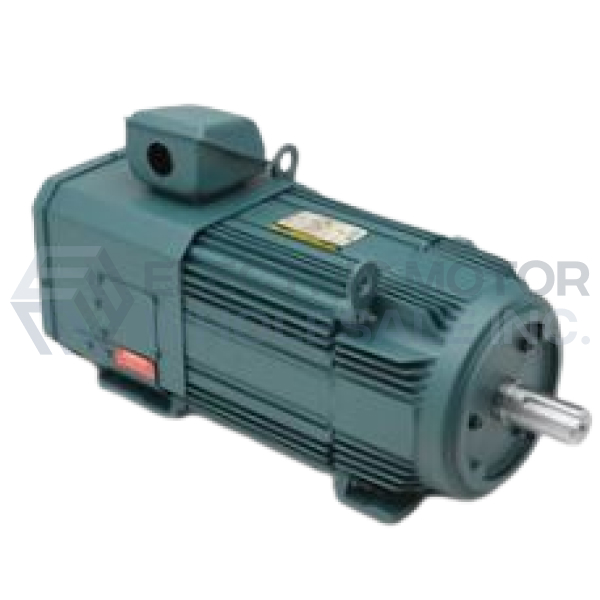

IDNRPM21104C BALDOR 10HP RPM AC Inverter Duty Motor F21-A000-0452, P21T0398

10HP BALDOR 1780RPM FL2162C TENV 3PH RPM AC Inverter Duty Motor IDNRPM21104C

Part Number:

IDNRPM21104C

Model/Spec Number:

F21-A000-0452

Manufacturer:

ABB/Baldor

IDNRPM21104C BALDOR 10HP RPM AC Inverter Duty Motors are designed for extruders, conveyors, crane & hoist systems, converting, pumps, web processing, test stands, traction duty, winders, and printing.

MSRP: $7,645.00

Regular Price

USD

6,248

QTY

Shipping Details

Free No Rush Shipping

Weight:

280 lbs

Dimensions:

18 x 35 x 29 inches

HS Code:

8501.52.4000

UPC:

781568465301

Technical Details

Specifications

Brand:	Baldor
Application:	Inverter Duty
Output HP:	10
Output KW:	7.5
Output RPM:	1780-3560
Frame Size NEMA:	FL2162C
Mount NEMA:	C Face With Base
Enclosure NEMA:	TENV
Voltage:	230/460
Frequency (Hz):	60-120

Documentation

IDNRPM21104C-InfoPacket

Obsolete P21T0398

Additional Information

Baldor Three Phase RPM AC Inverter Duty Motors are designed for extruders, conveyors, crane & hoist systems, converting, pumps, web processing, test stands, traction duty, winders, and printing.

FEATURES:

Compact square laminated steel frame FL210-L440 (FL180 is extruded aluminum) for inverter duty and vector duty 1000:1 constant torque.
Premium class H insulation, 40 C ambient, 1.0 S.F. Ball bearing.
Three normally closed thermostats (one per phase).
Surpasses the requirements of MG1, Part 31. VPI insulation & insulated O.D.E. bearing is standard on all L440 frames.
Exclusive optimum pole Inverter Duty - not for across the line operation.
