7.5HP BALDOR 1760RPM 213TC TENV 3PH MOTOR IDNM3770T

Catalog Number:  IDNM3770T
Description:  7.5HP,1760RPM,213TC,TENV,3PH,6-60HZ,INVERTER DUTY
Ship Weight:  196 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: A
DOE-CODE: --
FL EFFICIENCY: 91.7
FRAME: 213TC
CATALOG NUMBER: IDNM3770T
SPEC. NUMBER: 07J135W747G1
FL AMPS: 20.2/10.1
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 11/5.5
MAXIMUM-RPM: 6000
SPEED [rpm]: 1760
OUTPUT [hp]: 7.5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 1.23
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1
VOLTAGE: 230/460
HERTZ: 60

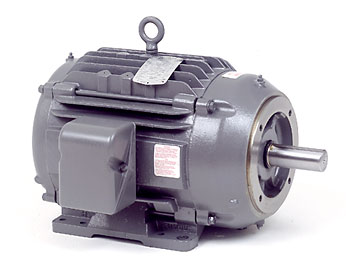

7.5HP BALDOR 1760RPM 213TC TENV 3PH MOTOR IDNM3770T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDNM3770T
Stock # IDNM3770T
Price: $1,534.00
Compare At: $2,640.00
