5HP BALDOR 1760RPM 213TC TENV 3PH MOTOR IDNM3767T

Catalog Number:  IDNM3767T
Description:  5HP,1760RPM,213TC,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  170 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 89.5
FRAME: 213TC
CATALOG NUMBER: IDNM3767T
SPEC. NUMBER: 07J135W202G2
FL AMPS: 13.4/6.7
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 6.8/3.4
MAXIMUM-RPM: 6000
SPEED [rpm]: 1760
OUTPUT [hp]: 5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 0.734
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1.16
VOLTAGE: 230/460
HERTZ: 60

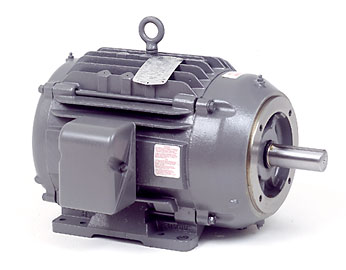

5HP BALDOR 1760RPM 213TC TENV 3PH MOTOR IDNM3767T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDNM3767T
Stock # IDNM3767T
Price: $1,477.00
Compare At: $2,543.00
