1.5HP BALDOR 1755RPM 145TC TENV 3PH MOTOR IDNM3584T

Catalog Number:  IDNM3584T
Description:  1.5HP,1755RPM,145TC,TENV,3PH,6-60HZ,INVERTER DUTY
Ship Weight:  57 lbs.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meet NEMA MG1, Part 31
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 84
FRAME: 145TC
CATALOG NUMBER: IDNM3584T
SPEC. NUMBER: 05E534X023G1
FL AMPS: 4.6/2.3
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 3/1.5
MAXIMUM-RPM: 6000
SPEED [rpm]: 1755
OUTPUT [hp]: 1.5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 0.142
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1.5
VOLTAGE: 230/460
HERTZ: 60
1.5HP BALDOR 1755RPM 145TC TENV 3PH MOTOR IDNM3584T

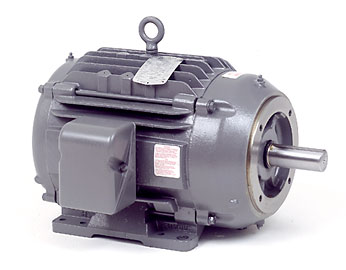

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDNM3584T
Stock # IDNM3584T
Price: $869.00
Compare At: $1,495.00
